Production process Introduction

Source factory, high quality, and low price.

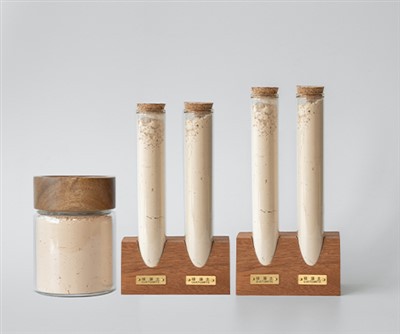

Calcined Diatomite Filter Aid is a high-porosity filter aid material formed by high-temperature calcination, used for liquid clarification and filtration in food, beverage, and chemical industries.

Advantages

High Clarity: The large specific surface area adsorbs fine impurities; the tertiary porous structure traps particles, improving the transparency of the finished product.

Good Chemical Stability: High SiO₂ content and stable structure prevent reaction with acidic media, making it suitable for food and chemical production.

Resistant to Powdering: Calcination improves particle strength, reducing fine powder loss during filtration and maintaining filter bed stability.

Safe and Environmentally Friendly: Made from natural diatomaceous earth, high-temperature impurity removal provides food-grade testing reports.

1-1001

Product Technical Data Sheet

Low density, high whiteness, low viscosity, and high purity.

Typical Physical & Chemical Properties

Grade	TD21	TD23	TD25	TD27	TS505	TS507	TS509	TS516	TS518	TS527	TS528	TS529	TS637	TS639
Color	Pink	Pink	Pink	Pink	white	white	white	White	White	White	White	White	White	White
Permeability(Darcy)	0.05	0.13	0.22	0.31	1.4	1.9	2.5	3.6	4.5	5.5	7.0	8.5	10.0	16.5
Tap density (g/cm³)	0.45	0.45	0.45	0.45	0.46	0.46	0.46	0.47	0.47	0.47	0.47	0.47	0.48	0.48
Wet Density(g/cm³)	0.37	0.37	0.37	0.37	0.35	0.35	0.35	0.34	0.34	0.33	0.33	0.33	0.33	0.32
sieve analysis(%) +150 Mesh	0.4	0.6	0.9	1.2	2.5	2.8	3.0	6.3	7.5	10.5	15.5	15.8	19.0	25.0
Median Particle Diameter(um)	15.2	17.8	20.6	22.8	25.0	28.8	30.5	32.5	37.2	40.8	45.8	50.2	60.7	72.6
PH	6.8	6.8	6.9	7.0	8.5	8.5	8.5	9.0	9.0	9.2	9.2	9.2	9.5	9.5

1,Tyler Screen;+150 mesh= > 105 microns 2,Note: Permeability (Darcy) is tested by the CHINA method.
Product Grades	SiO₂(%)	Al₂O₃(%)	FeO₃(%)	CaO(%)	MgO(%)	Loss on ignition (%)
TD21 Thru TD27 Grades	90.5	3.15	1.35	0.48	0.38	0.25
TS505 Thru TS639 Grades	89.9	3.26	1.23	0.45	0.35	0.22
The properties reported represent typical values. The values are supplied as a technical service. For important health and safety information, please see the MSDS.				中国硅藻土制造商 CHINA DIATOMITE MAN UFACTURER

Company Introduction

10 years of focus on diatomaceous earth research, development, and manufacturing.

1-13 -

Honor And Qualification

Official certifications and professional after-sales service.

Certificate name

1-1001 -

Why Choose Us

Providing one-stop solutions.

888888

Packaging and Storage

Packaging: 20kg/25kg bags, palletized for container shipping.

Transportation: Pressure-resistant and moisture-proof, suitable for sea/land transport.

Storage: Store in a dry, sealed container, protected from moisture.

Shelf Life: 24 months unopened.

5555

FAQ

Q: What are the differences between Calcined Diatomite Filter Aid and ordinary diatomite filter aids?

A: Calcined diatomite has higher strength, a more stable pore structure, faster filtration speed, and stronger clarification ability.

Q: What industries are it suitable for?

A: Food and beverage (beer, wine, juice), oil refining, chemical industry, wastewater treatment, pharmaceutical production, etc.

Q: Does it meet food-grade or safety certifications?

A: FDA/food-grade compliance documentation and third-party testing can be provided (according to customer needs).

Q: What about supply capacity and delivery time?

A: Standard models are in stock, with a delivery time of 7-10 days; large-volume orders can be supplied monthly on a stable basis.

Q: Do you support customized particle size or filtration performance?

A: Yes. Different particle size distributions and performance parameters can be customized according to filtration flow rate and clarification requirements.
